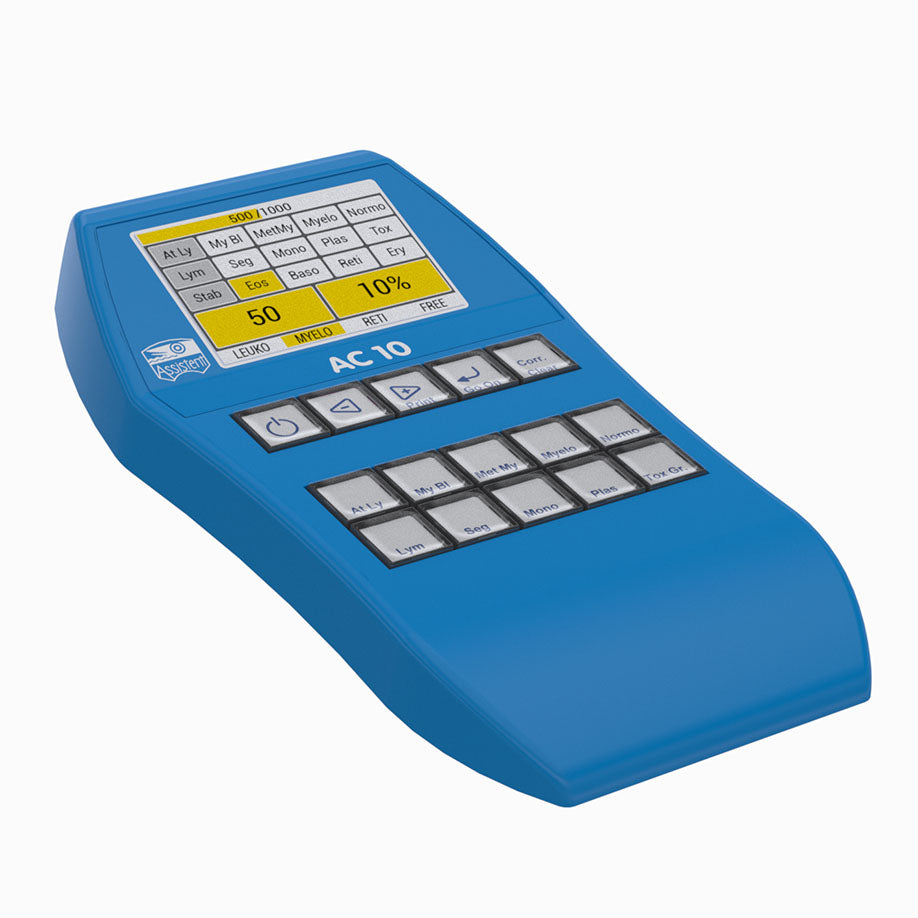

The COUNTER AC-10 is an electronic counting and storage device for microscopic evaluation of differential blood counts. The device supports precise recording and storage of counting results, while the microscope image can be continuously checked.
The evaluation counts can be entered directly, with the last count being automatically saved. Software for PC evaluation is available for download. Data transfer is done via USB Mini. An instruction manual is included.
Functions and Features
-
10 counting keys
-
Counting steps: 10 – 1000 in steps of 10
-
Programs: LEUKO, MYELO/RBC, RETI, FREE
-
Storage of the last count
-
TFT color display 3.5''
-
Data transfer via USB Mini
Counting key labels
-
Eos
-
Baso
-
Promy
-
Myelo
-
Div
-
Juve
-
Stab
-
Seg
-
Lym
-
Mono
Function Keys
-
On/Off
-
Program
-
OK
-
Error/Clear
-
Count method
Technical Data
-
Mains operation: USB power adapter 5 VDC / 300 mA
-
Battery operation: via external USB power bank (optional)
-
Dimensions: 13 x 23.5 x 3.5 cm
The AC-10 is intended for the structured and reproducible evaluation of differential blood counts in the laboratory.
